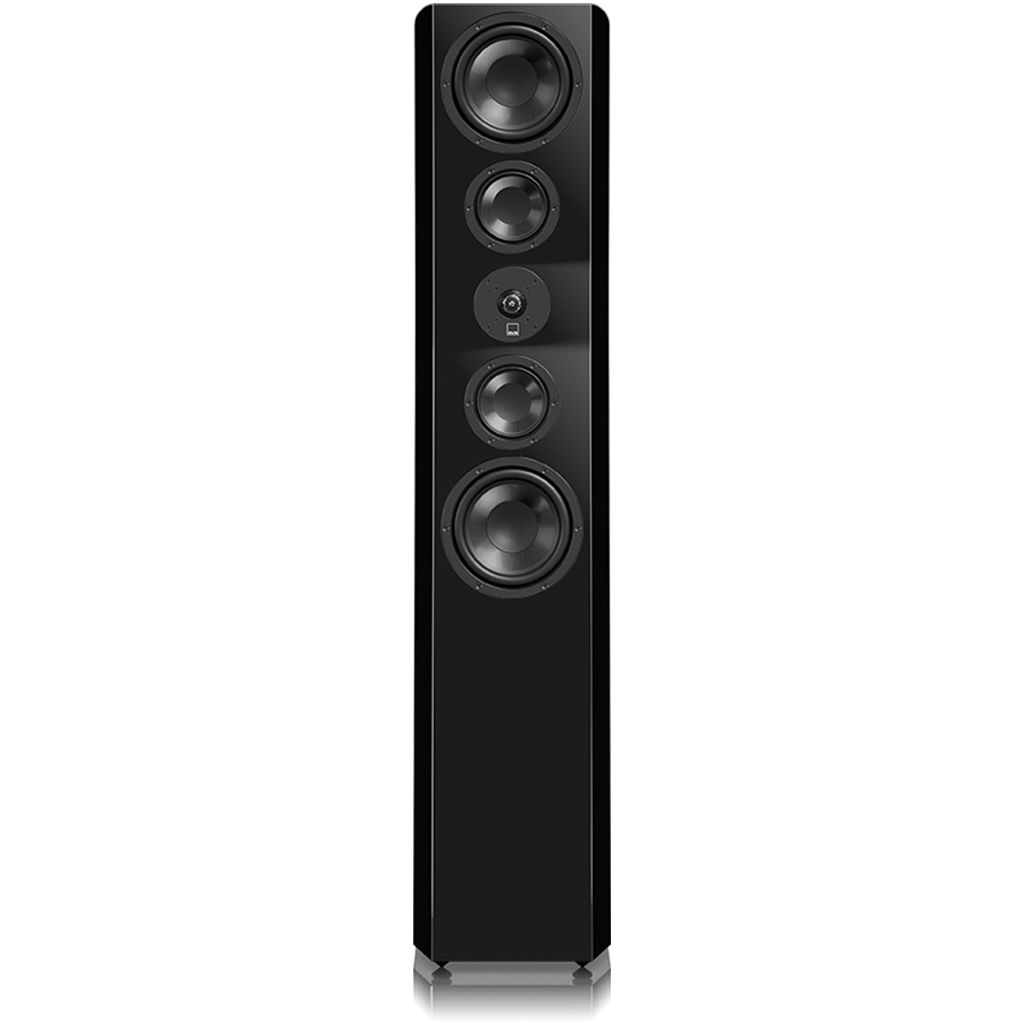

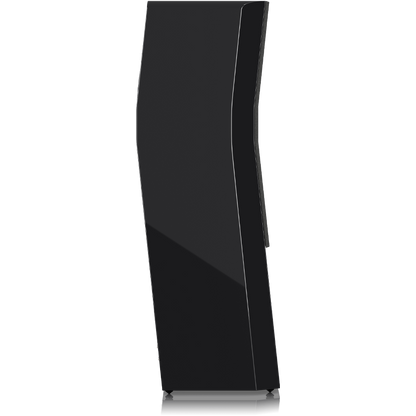

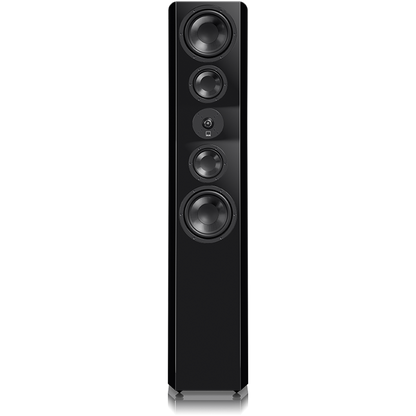

SVS Ultra Evolution Titan

• Frequency Response: 27Hz to 40kHz (+/-3 dB)
• Nominal Impedance: 6 ohms

• Sensitivity: 88dB (2.83V @ 1 meter full-space, 300Hz – 3kHz)
• Recommended amplifier power: 20 – 300 watts

• Floor-standing Tower Loudspeaker

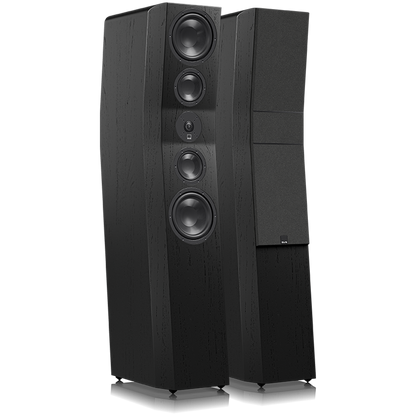

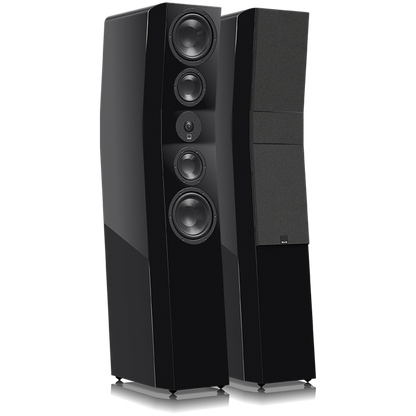

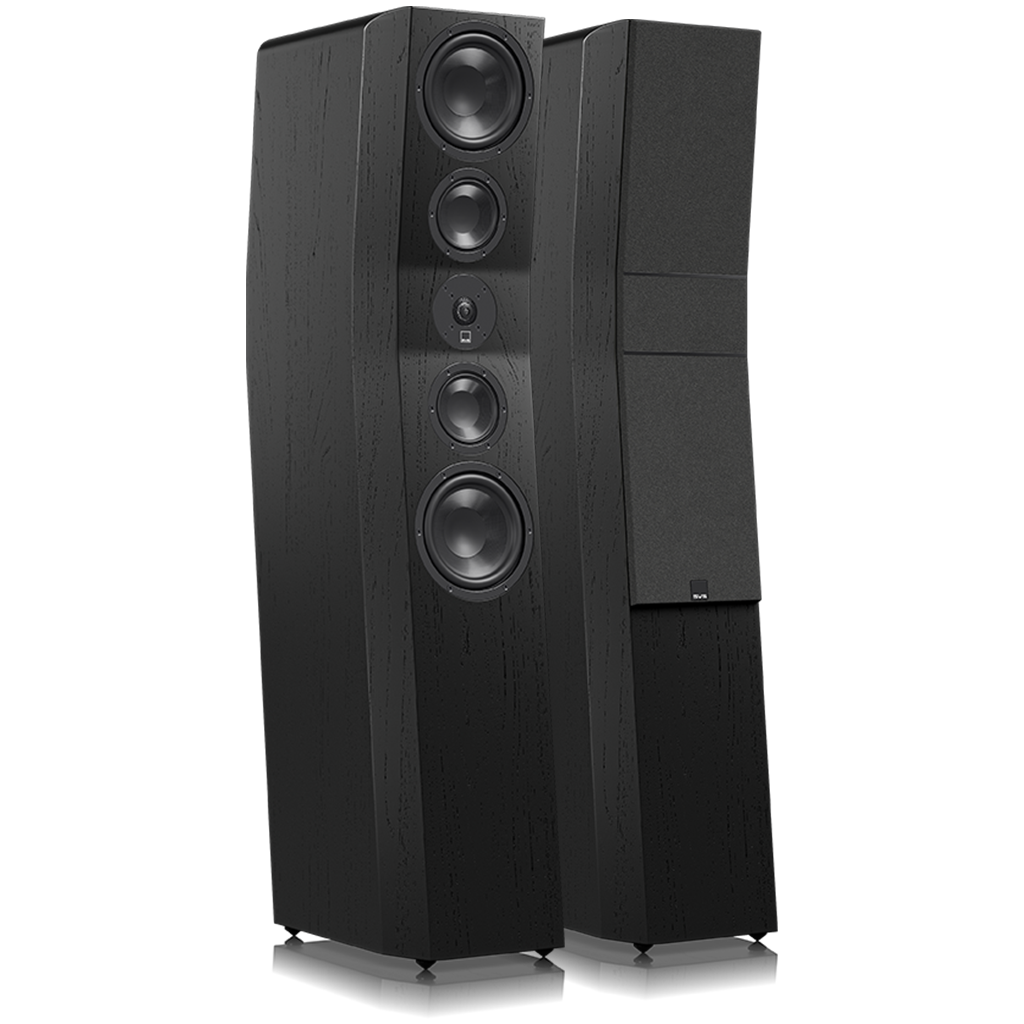

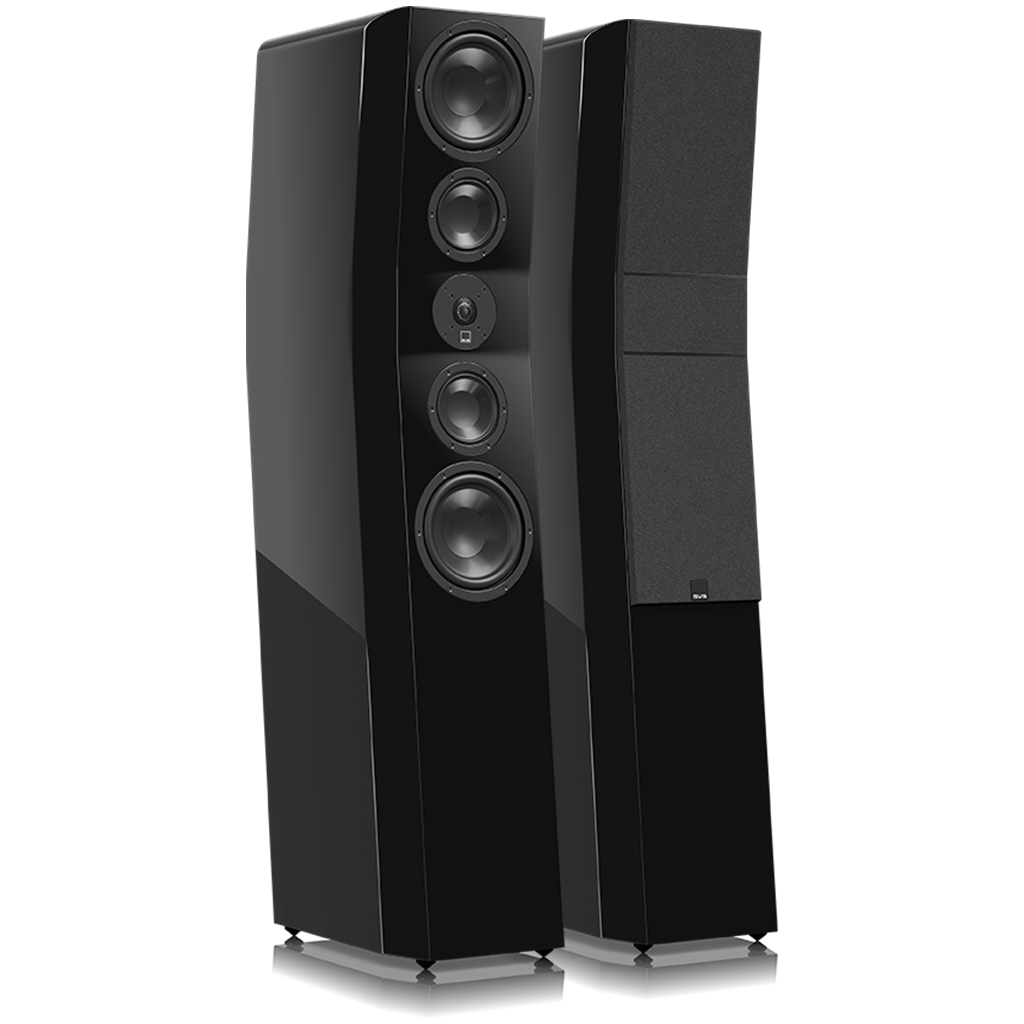

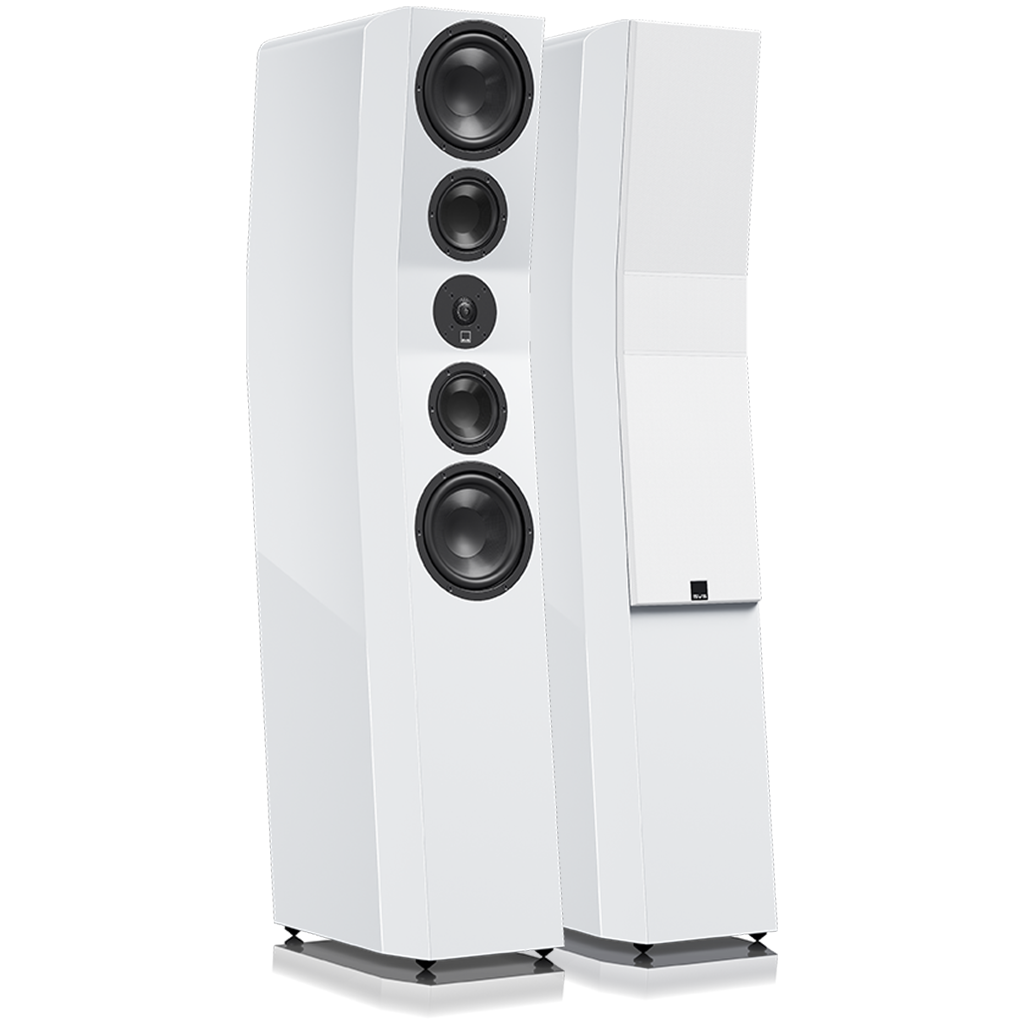

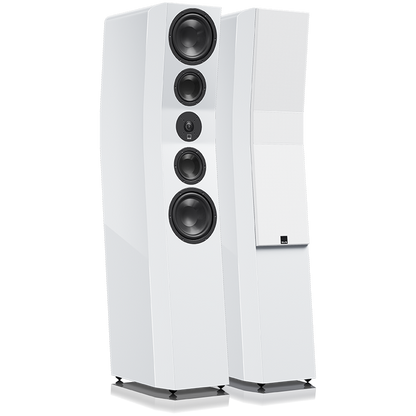

• Piano gloss black, piano gloss white, real black oak veneer finish options
• Dual gold-plated 5-way binding posts

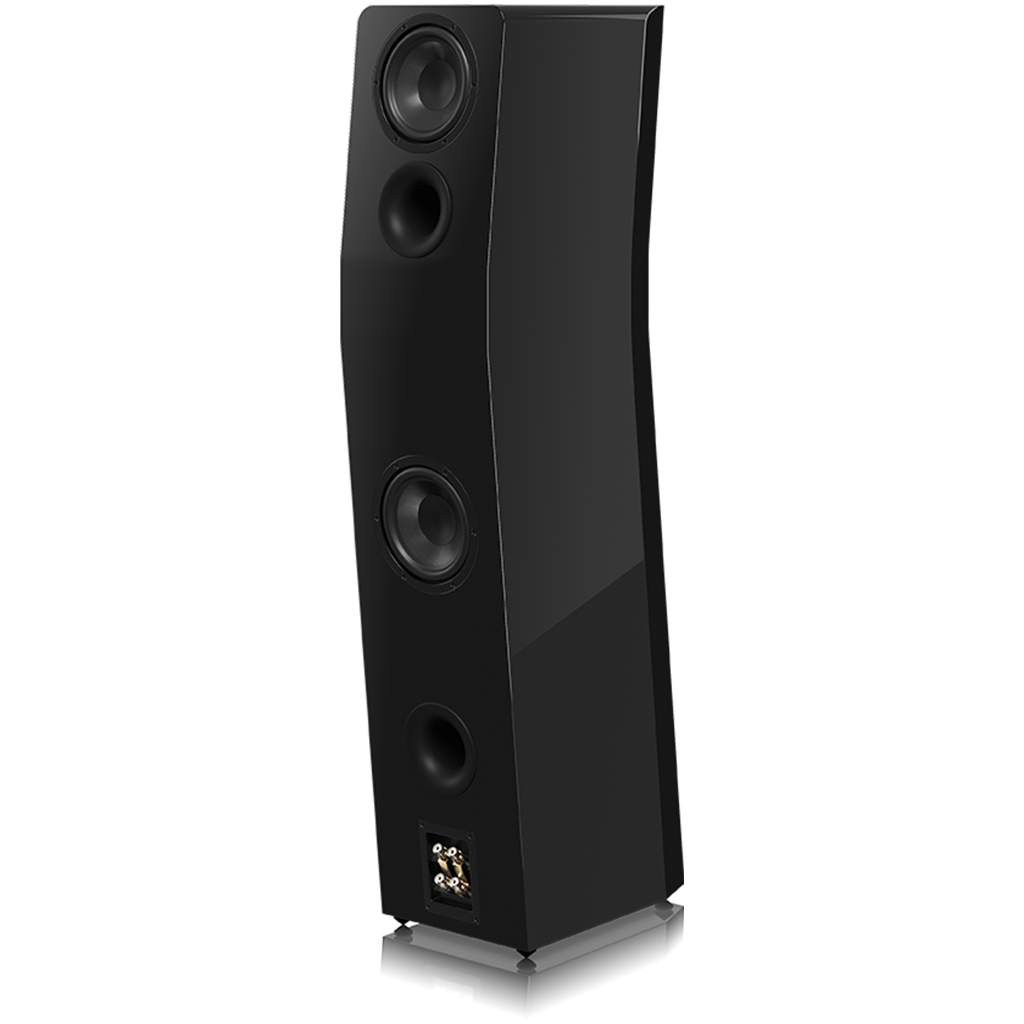

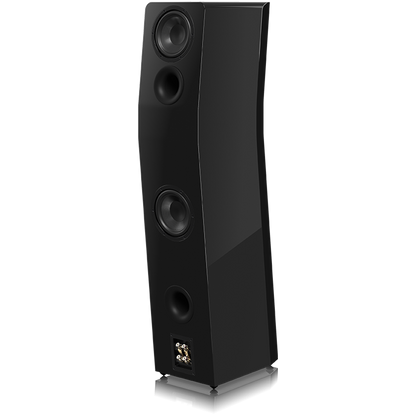

• Dual 2.5” wide-flared rear-firing ports   

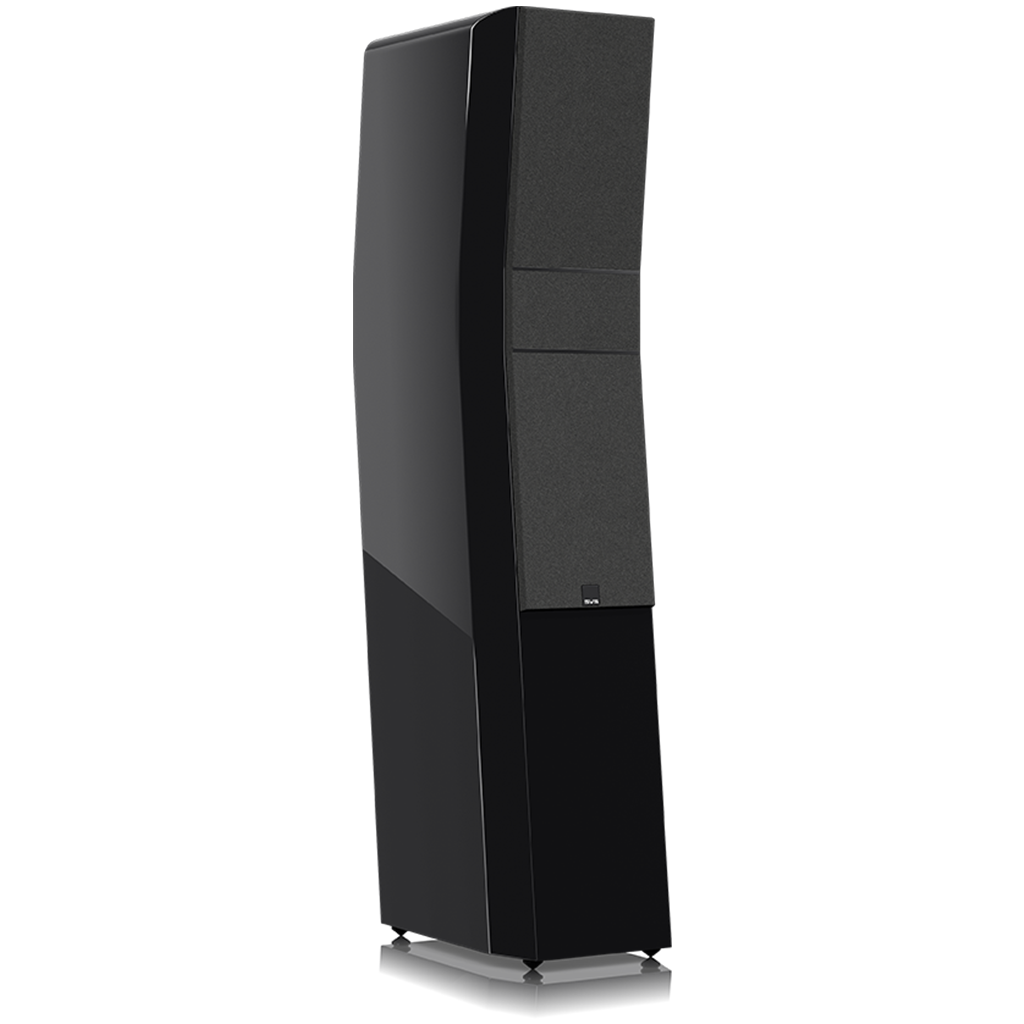

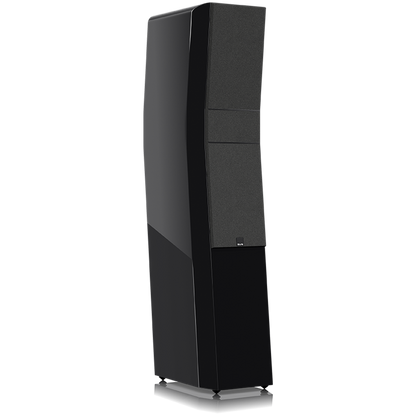

• Cloth grille with magnetic retention system
• Elastomer screw-in feet – adjustable for level

• Spiked metal screw-in feet included – adjustable for level
• Cabinet Dimensions: 46.54” (H) x 9.8” (W) x 17.3” (D) / 1182mm (H) x 249mm (W) x 439.3mm (D)
• Overall Dimensions: 47.13” (H) x 9.8” (W) x 17.3” (D) / 1197mm (H) x 249mm (W) x 439.3mm (D) (includes grille, feet, and binding posts)
• Shipped Dimensions: 51.1" (H) x 14.1" (W) x 21.9"(D) / 1298mm (H) x 357mm (W) x 556mm (D)
• Weight Packaged: 80.5 pounds / 36.5 kgs
• Weight Unboxed: 69.7pounds / 31.6 kgs

1” Diamond Coated Tweeter

• FEA-optimized Organic Cell Lattice Diffuser for airy, unveiled highs and pristine clarity.
• Cutting-edge vapor-deposition grows a hyper-rigid diamond-like coating on an aircraft-grade aluminum dome, pushing high-frequency extension further beyond human hearing, and delivering best-in-class fidelity, linearity, and transient response.
• Silver tinsel for optimal signal transfer and power handling.

Dual 4.5” Midrange Drivers

• Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond passband.
• Precision-cast aluminum-alloy baskets ensure precise alignment of critical components and maximize thermal dissipation.
• Vented Kapton voice coil former is exceptionally lightweight for excellent dynamics and transient response.

Quad 6.5” Woofers:

• Long stroke motor and suspension for high output.
• Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond passband.
• Precision-cast aluminum alloy baskets ensure precise alignment of critical components and maximize thermal dissipation.
• Vented aluminum voice coil former to maximize thermal control while minimizing air compression artifacts at high drive levels.

Crossover:

• 3-way crossover with premium-grade capacitors, inductors, resistors and heavy-trace printed circuit board
• Tweeter-to-Midrange crossover: 1.9 kHz
• Midrange-to-woofer crossover: 160 Hz

Cabinet:

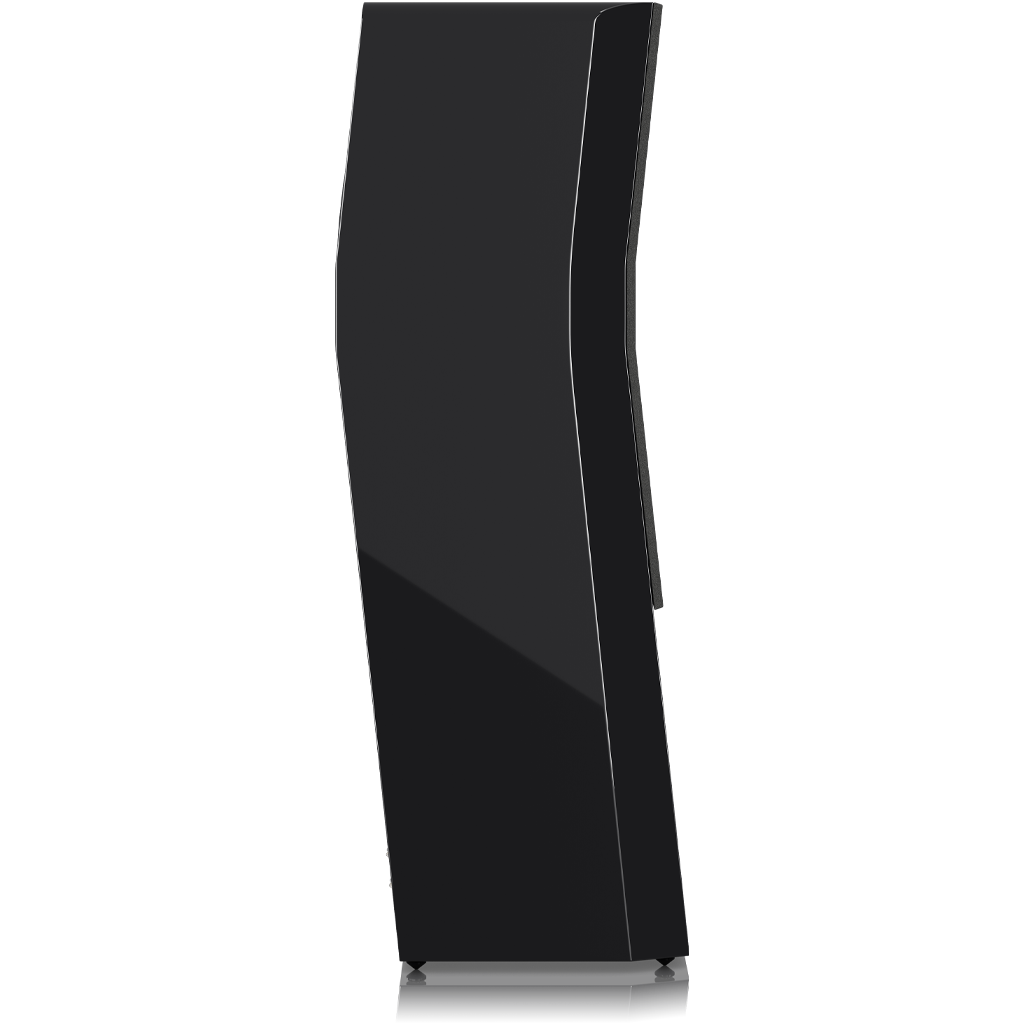

• Acoustically Centered Time Alignment architecture.
• Acoustically-centered architecture orients the mid-range and woofer arrays in rotational-symmetry around the tweeter, ensuring that low, mid, and high-frequencies emanate from the same effective point in space, creating a coherent, integrated, faithful acoustic image.
• Time-aligned cabinet geometry introduces microsecond-level time delays between the drivers, ensuring that the effective acoustic-center of each driver is equidistant from the listener.   The result is improved linearity and directionality throughout the crossover frequencies, and a more accurate soundstage.
• Quad 6.5” woofers in Force-Balanced Opposed Array energize any room with deep, accurate, evenly distributed bass, while contributing a net-zero vibration force to the cabinet and other components.
• Dual 4.5” midrange drivers share a dedicated acoustic-suspension enclosure, symmetrical around the tweeter.
• Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improve on-axis and off-axis high-frequency response
• Extra-thick 1” (25mm) driver baffles ensure a rigid, resonance-free mounting for all drivers.
• FEA-optimized ¾” (18mm) cabinet construction, extensive bracing, and acoustic insulation eliminate acoustic and structural resonances, ensuring an inert enclosure and an uncolored response, even at the highest drive levels.
